Property Grid ActiveX Controls v24.0
Property Grid ActiveX Overview
Command Bars for ActiveX provides Windows developers with a sophisticated Office-style Command Bars and One Note style MDI tab windows. The framework fully supports menu and toolbar customization to give you more control over your application's workspace. Command Bars comes with built-in theme support that allows you to choose from predefined themes such as Office XP, Office 2003, and Visual Studio .NET.
Docking Pane for ActiveX provides Windows developers with a sophisticated Visual Studio.NET™ style docking pane. Developers can easily create tear-off tabs and auto-hide windows that allow for a more manageable application workspace. The docking panes come with built-in theme support that allows you to choose from predefined themes such as Visio and Visual Studio .NET.

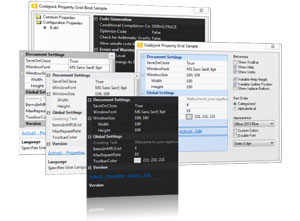

Property Grid for ActiveX provides Windows developers with a sophisticated Visual Studio.NET™ style property grid. Developers can easily create a hierarchical list of editable properties and represent many different data types or sub-items. The property grid comes with a built-in toolbar for easy sorting and grouping, and a help panel to display information on each selected item.
Codejock Software's Grid Control allows you to display a hierarchical list of items similar to Outlook 2003 email inbox.
Suite Pro Controls provide many enhanced components such as hyperlink and multiple selection tree controls, browse edit, and Office-style color popups, Vista task dialog, and much more.
Calendar for ActiveX provides Windows developers with a sophisticated Office-style Calendar.
Markup for ActiveX provides additional Markup Support for Controls.
Shortcut Bar for ActiveX provides developers with full theme support, giving their applications the closest, most exact Office-style themes of any third-party tool available today.
Task Panel for ActiveX provides Windows developers with features similar to the Task Panels seen in Microsoft Office and Windows Explorer. You can easily manage your application shortcuts and have a unique way of displaying information to the end user.
Skin Framework for ActiveX allows Windows developers to fully skin their applications, including components such as title bar, scroll bars, buttons, checkboxes, and option buttons.
Syntax Edit for ActiveX Visual Studio .NET style Syntax Editor Control provides your users with a highly sophisticated text editor control that supports advanced features such as text block grouping, syntax colorization, line numbers, font type, predefined color schemes, bookmarks, breakpoints, and many more advanced features.
Flow Graph ActiveX is a graphing control used to display relationship graphs. This can be thought of as a relationship diagram commonly used to display the relationships for a relational database.
Chart Pro ActiveX is an advanced chart library for Windows environment software development. The Chart ActiveX control brings the chart to virtually every development platform for Windows. The Chart Pro controls are easy to understand and can be implemented in only a few lines of code, but it also provides a rich set of classes for customization and enhancement.
Project Overview
| Control | Description |
|---|---|
| PropertyGrid | Represents a PropertyGrid control |
| Class Module | Description |
|---|---|
| ColorManager | The ColorManager allows you to get the system colors for each display element of your application. Display elements are the parts of a window and the display that appear on the system display screen. Display elements are easily referenced by index. |
| ImageManagerIcon | Represents a single image in a component. |
| ImageManagerIcons | A collection of icons. |
| ImageManagerIconSet | Represents a collection of icons in the ImageManager for enumeration purposes. |
| IResourceImageList | Object used to load and access resource themes for the control, e.g., Office 2007, Office 2007/2010 Ribbon, Office 2010, and Windows 7 appearances. |
| PropertyGridGlobalSettings | Property Grid Global Settings. |
| PropertyGridInplaceButton | Represents an in-place button in the Property Grid control. |
| PropertyGridInplaceButtons | Represents a collection of in-place buttons for a specified grid item. |
| PropertyGridInplaceSliderControl | Represents a slider control. |
| PropertyGridInplaceSpinButton | Represents a spin button. |
| PropertyGridItem | Represents an item in the Property Grid. |
| PropertyGridItemBool | Represents an item in the Property Grid that stores a boolean value. |
| PropertyGridItemColor | Represents an item in the Property Grid that stores a color value. |
| PropertyGridItemConstraint | Represents a single item constraint. |
| PropertyGridItemConstraints | Represents the collection of PropertyGridItemConstraint objects for a PropertyGridItem. |
| PropertyGridItemDate | Constructs a PropertyGridItemDate object. |
| PropertyGridItemDouble | Constructs a PropertyGridItemDouble object. |
| PropertyGridItemFont | Constructs a PropertyGridItemFont object. |
| PropertyGridItemMetrics | Used to store and group together the general drawing metrics of a PropertyGrid. |
| PropertyGridItemOption | Represents an option button or check box. |
| PropertyGridItemPicture | Represents a PropertyGridItem of type PropertyItemPicture. |
| PropertyGridItems | Represents a collection of PropertyItems. |
| PropertyGridPaintManager | Paint manager object used for drawing a property grid control window. |
| PropertyGridUpdateContext | Object used to save the current state of the property grid such as the currently selected item, PropertySort preference, and the expanding state of each item in the grid. |
| PropertyGridVerb | Represents a verb link that is displayed in the verb panel. |
| PropertyGridVerbs | Represents a collection of PropertyGridVerb objects which are displayed in the verb panel. See PropertyGridVerb for a description of verbs. |
| ResourceImages | Collection of images. |
| ToolTipContext | Represents the tool tip window that is used to display tool tips. |
| Enumeration | Description |
|---|---|
| PropertyGridItemColorEditor | Specifies which type of color selector is used for a PropertyGridItem. |
| PropertyItemDrawTextFormat | Text formatting styles for property grid items. |
| PropertyItemEditStyle | Edit style(s) for property grid items when in edit mode. |
| PropertyItemFlags | Flags that indicate the different properties of a PropertyGridItem. |
| PropertyItemType | Specifies the type of a PropertyGridItem. |
| PropertySort | Specifies the grouping/sort styles used to display PropertyGridItems. |
| XTPApplicationAmbientProperty | Display element colors. |
| XTPColorManagerColor | Enumeration used to determine the current Windows XP theme in use. |
| XTPCurrentSystemTheme | Specifies when an image/icon/bitmap will be displayed. This is specified when it is added to the PropertyGrid's collection of images. |
| XTPPropertyGridBorderStyle | Border Style enumeration. |
| XTPPropertyGridVisualTheme | Specifies various visual themes that can be applied to the Property Grid. |
| XTPToolTipIcon | Specifies the icon that will be displayed in the tool tip window when displaying the title and description of the control using the ShowTitleAndDescription method. |
| XTPToolTipStyle | Specifies the style of the tool tip when it is displayed. |
