PropertyGridItemPicture Object

Description

Constructs a PropertyGridItemPicture object. PropertyGridItems of type PropertyItemPicture are of this type.

For a list of all members defined in this module, see PropertyGridItemPicture Members.

Object Model

PropertyGridItemPicture Object Model
Diagram
Constraints
Diagram
PropertyGridItem
Parent
Add Child Item
Add Child Item Binded
Insert Child Item
Value Metrics
Caption Metrics
Add Inplace Button
Add Slider Control
Add Spin Button
Inplace Buttons
PropertyGridInplaceButton
Insert Child Item Binded

Remarks

Items of type PropertyItemPicture will allow a picture to be loaded into a property grid item. The Value of the item needs to be set to the pointer of a picture object. Supported picture formats include:

  • Bitmap (.bmp)
  • Icon (.ico)
  • Cursor (.cur)
  • Metafile (.wmf)
  • Enhanced Metafile (.emf)
  • GIF (.gif)
  • JPEG (.jpg)

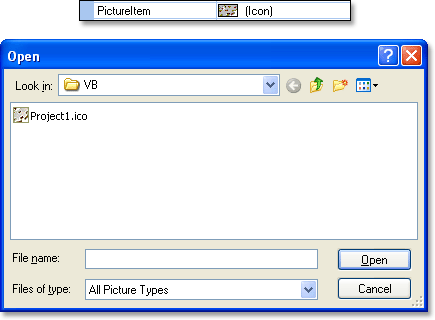

The property grid item will display a small preview thumbnail of the loaded picture and will display the picture type.

Picture Preview

See Also
