FooterIcon Property

Description

Gets or sets the icon for the Footer area of the task dialog.

Property Type

Read-write property

Syntax (Visual Basic)

Public Property FooterIcon() As [TaskDialogIcon](XtremeSuiteControls~Enumerations~TaskDialogIcon_EN.md)

Remarks

Set FooterIcon to any value in the TaskDialogIcon enumeration to display that icon next to the Footer area of the task dialog.

To use a custom icon, FooterIcon must be set to xtpTaskIconCustom and the FooterIconHandle property must contain a handle to an icon that is to be displayed in the task dialog Footer area. If FooterIconHandle is NULL and FooterIcon is set to xtpTaskIconCustom, no icon will be displayed.

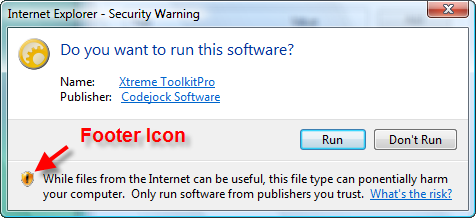

The illustrations below show the icons available to use in the dialog. The orange shield icon is a custom icon:

Footer Icon

The following are icons displayed in the MainIcon property, but they can also be used in the footer area:

Main Icon 1
Warning Icon
Shield Icon
Information Icon
Error Icon

See Also
