StatusBarSwitchPane Object

Description

Represents a status bar switch pane object.

For a list of all members defined in this module, see StatusBarSwitchPane Members.

Remarks

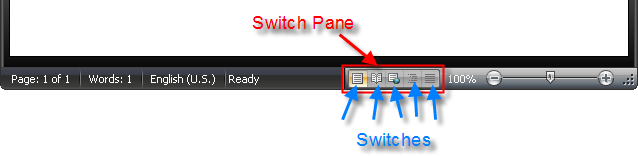

Status Bar Switch Pane

Notes:

  • AddSwitchPane is used to add a Switch Pane to the status bar.
  • The SwitchPaneClick event can be used to select/check a switch when it is clicked as well as perform some other action when the appropriate switch has been clicked.
  • AddSwitch will add a new switch to the Switch Pane.
  • RemoveSwitch removes a switch by passing in the Id of the switch to remove.
  • The Checked property holds the Id of the currently selected switch.

Example

' Code to load images for switches, add a switch pane, and switches

CommandBars.Icons.LoadBitmap App.Path & "\res\StatusBarViewSwitches.png", _
    Array(ID_SWITCH_PRINTLAYOUT, ID_SWITCH_FULLSCREENREADING, ID_SWITCH_WEBLAYOUT, ID_SWITCH_OUTLINE, ID_SWITCH_DRAFT), xtpImageNormal

Dim SwitchPane As StatusBarSwitchPane
Set SwitchPane = StatusBar.AddSwitchPane(ID_INDICATOR_VIEWSHORTCUTS)

SwitchPane.AddSwitch ID_SWITCH_PRINTLAYOUT, "Print Layout"
SwitchPane.AddSwitch ID_SWITCH_FULLSCREENREADING, "Full Screen Reading"
SwitchPane.AddSwitch ID_SWITCH_WEBLAYOUT, "Web Layout"
SwitchPane.AddSwitch ID_SWITCH_OUTLINE, "Outline"
SwitchPane.AddSwitch ID_SWITCH_DRAFT, "Draft"
SwitchPane.Checked = ID_SWITCH_PRINTLAYOUT
SwitchPane.Caption = "&View Shortcuts"

Private Sub StatusBar_SwitchPaneClick(ByVal Pane As XtremeCommandBars.StatusBarSwitchPane, ByVal Id As Long)
    Pane.Checked = Id

    Select Case Id
        Case ID_SWITCH_PRINTLAYOUT:
            MsgBox "Print Layout Switch Clicked"
        Case ID_SWITCH_FULLSCREENREADING:
            MsgBox "Full Screen Reading Switch Clicked"
        Case ID_SWITCH_WEBLAYOUT:
            MsgBox "Web Layout Switch Clicked"
        Case ID_SWITCH_OUTLINE:
            MsgBox "Outline Switch Clicked"
        Case ID_SWITCH_DRAFT:
            MsgBox "Draft Switch Clicked"
    End Select
End Sub

See Also
