AddCustomBar Method

Description

Allows custom commandbars created with the CreateCommandBar method to be added to the commandbars.

Syntax

Public Sub AddCustomBar( _
    ByVal [CommandBar](#) As [CommandBar](XtremeCommandBars~CommandBar.md), _
    ByVal [Name](#) As String, _
    ByVal [Position](#) As [XTPBarPosition](XtremeCommandBars~Enumerations~XTPBarPosition_EN.md) _
)

Parameters

  • CommandBar
    Reference to the commandbar to add.

  • Name
    Text name of the commandbar, will also be used as the title for floating bars.

  • Position
    The position to place the commandbar. The following values are available:

Value Description
xtpBarTop The bar is docked to the top edge of the form.
xtpBarBottom The bar is docked to the bottom edge of the form.
xtpBarLeft The bar is docked to the left edge of the form.
xtpBarRight The bar is docked to the right edge of the form.
xtpBarFloating The bar is a floating command bar.
xtpBarPopup Not Used for dialog bar.
xtpBarListBox Not Used for dialog bar.
xtpBarComboBoxGalleryPopup The commandbar will be displayed as a gallery.

Remarks

AddCustomBar allows custom commandbars created with the CreateCommandBar method to be added to the commandbars.

In the code below, CreateCommandBar uses the CXTPFloatingPopupBar class to create a floating popup toolbar that looks exactly like an expanded menu, i.e., the File menu when expanded.

Dim FileMenuBar As CommandBar
Set FileMenuBar = CommandBars.CreateCommandBar("CXTPFloatingPopupBar")
CommandBars.AddCustomBar FileMenuBar, "File Menu", xtpBarFloating

With FileMenuBar
    AddButton .Controls, xtpControlButton, ID_FILE_NEW
    AddButton .Controls, xtpControlButton, ID_FILE_OPEN
    AddButton .Controls, xtpControlButton, ID_FILE_CLOSE
    AddButton .Controls, xtpControlButton, ID_FILE_SAVE
    AddButton .Controls, xtpControlButton, ID_FILE_PRINT, True
    AddButton .Controls, xtpControlButton, ID_FILE_PRINT_SETUP
    AddButton .Controls, xtpControlButton, ID_FILE_EXIT, True
End With

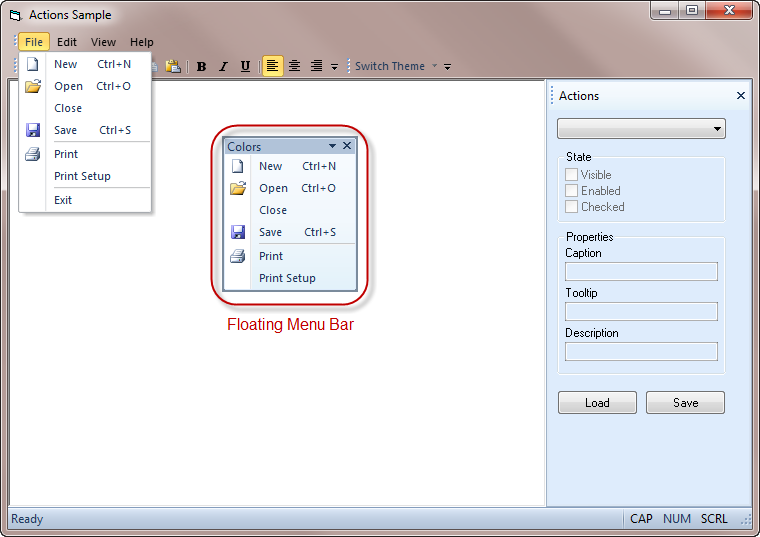

Below is a custom CXTPFloatingPopupBar toolbar.

Floating Menu Bar
