InvertedStep Property
Description
Specifies the direction the step line will "step".
Property Type
Read-write property
Syntax (Visual Basic)
Public Property InvertedStep() As Boolean
Return Type
True to invert the steps.
Remarks
By default, the "steps" will move to the right, then up/down. If inverted, the "steps" will first move up/down, then right.
This diagram shows non-inverted steps:

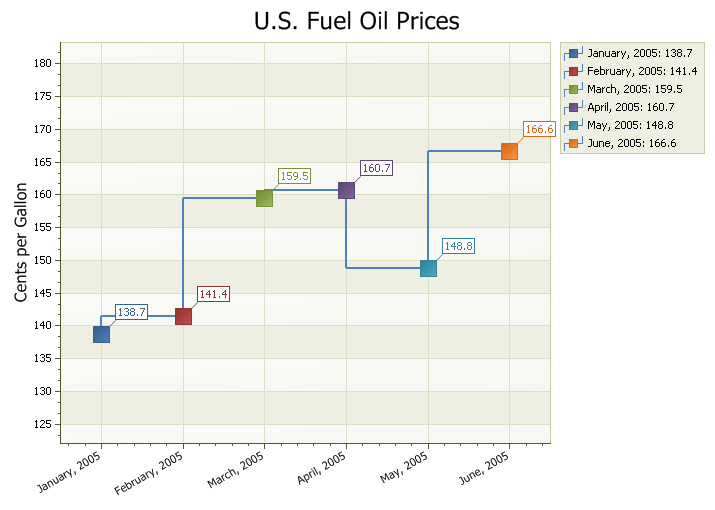

This diagram shows inverted steps:
See Also
ChartStepAreaSeriesStyle Object
