ChartLineStyle Object

Description

Represents a chart line style. This is the style applied to a data series when using a chart style that uses lines (line, area, spline, etc.).

For a list of all members defined in this module, see ChartLineStyle Members.

Remarks

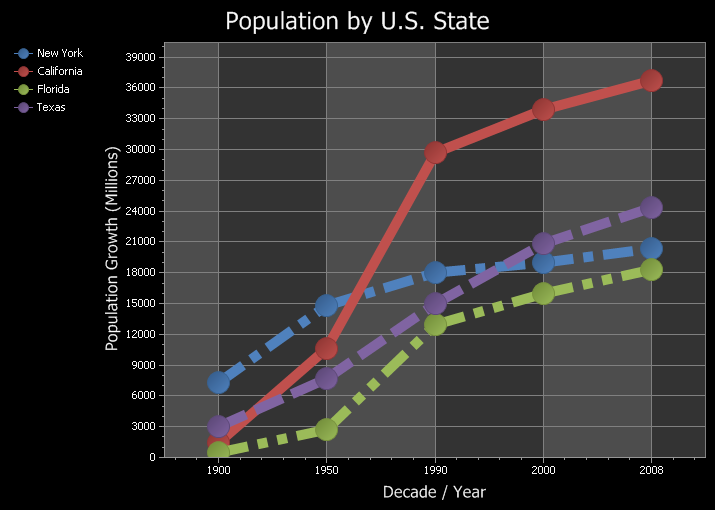

Any element that draws a line can use ChartDashStyle to draw a dashed style line.

Example

Dim xLineStyle As ChartLineSeriesStyle
Dim nThickness As Integer

nThickness = 10

Set xLineStyle = New ChartLineSeriesStyle
xLineStyle.LineStyle.DashStyle = xtpChartDashStyleDash
xLineStyle.LineStyle.Thickness = nThickness
Set ChartControl.Content.Series(3).Style = xLineStyle

Set xLineStyle = New ChartLineSeriesStyle
xLineStyle.LineStyle.DashStyle = xtpChartDashStyleDashDotDot
xLineStyle.LineStyle.Thickness = nThickness
Set ChartControl.Content.Series(2).Style = xLineStyle

Set xLineStyle = New ChartLineSeriesStyle
xLineStyle.LineStyle.DashStyle = xtpChartDashStyleSolid
xLineStyle.LineStyle.Thickness = nThickness
Set ChartControl.Content.Series(1).Style = xLineStyle

Set xLineStyle = New ChartLineSeriesStyle
xLineStyle.LineStyle.DashStyle = xtpChartDashStyleDashDot
xLineStyle.LineStyle.Thickness = nThickness
Set ChartControl.Content.Series(0).Style = xLineStyle

See Also

ChartLineStyle Members

---
