PanelDirection Property

Description

Gets/sets the direction multiple diagrams are displayed in, horizontal or vertical.

Property Type

Read-write property

Syntax (Visual Basic)

Public Property PanelDirection() As [ChartPanelDirection](XtremeChartControl~Enumerations~ChartPanelDirection_EN.md)

Return Type

Returns the direction multiple diagrams are displayed in, horizontal or vertical. Value comes from ChartPanelDirection.

Remarks

The diagrams in the chart can be displayed horizontally or vertically. Each diagram can individually be rotated as well.

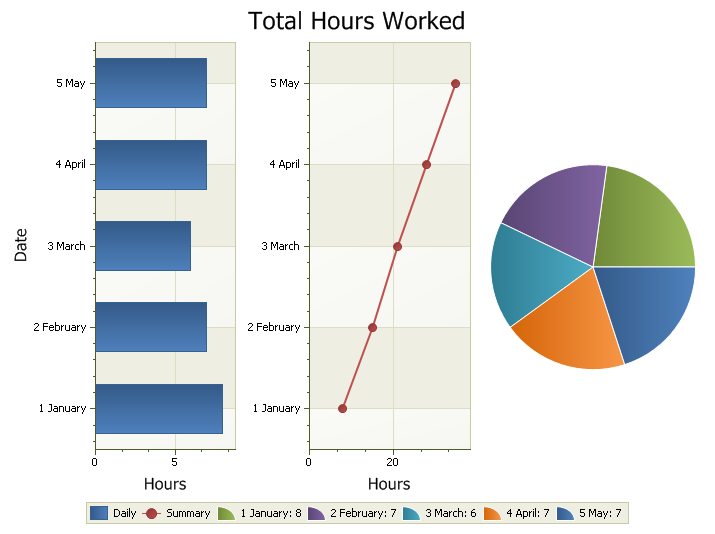

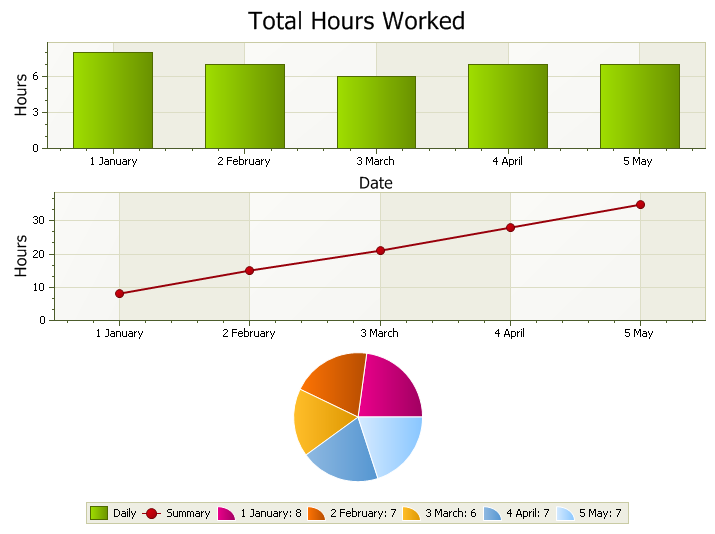

Below you will see 3 diagrams in both orientations.

Example

ChartControl.Content.PanelDirection = xtpChartPanelHorizontal

See Also

• ChartContent Object

---
