ChartAxisStrip Object

Description

Represents a strip parallel to an axis.

For a list of all members defined in this module, see ChartAxisStrip Members.

Object Model

Chart Axis Strip Object Model
Parent-Child Diagram
Fill Style Diagram

Remarks

Strips allow you to highlight a specific set of values along an axis. The values specified in the strip will become shaded, and an entry will be added to the legend for this strip so that you can describe the meaning of the strip. You can have as many strips as you need.

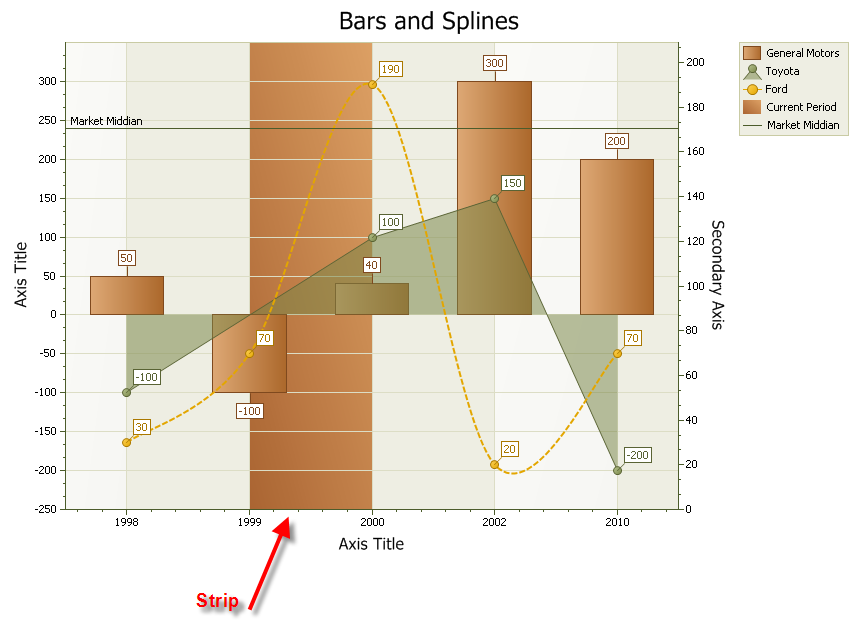

Strip Example

Example

Dim Strip As ChartAxisStrip
Set Strip = Diagram.AxisX.Strips.Add("Current Period")
Strip.FillStyle.FillMode = xtpChartFillGradient
Strip.FillStyle.GradientAngle = xtpChartGradientTopRightToBottomLeft
Strip.Color = RGB(170, 100, 50)
Strip.Color2 = RGB(220, 160, 100)
Strip.AxisMinValue = 1999
Strip.AxisMaxValue = 2000

See Also

ChartAxisStrip Members
