ChartAreaSeriesStyle Object

Description

Area chart style.

For a list of all members defined in this module, see ChartAreaSeriesStyle Members.

Object Model

ChartAreaSeriesStyle Object Model
Error Bar
Get Rotation
Label
Marker
Fill Style
Border

Remarks

An area chart is very similar to a line chart. Data is displayed using different colors in the "area" below the line. Each series of points is represented with a different color. Area charts are commonly used to display accumulated values over a period of time. Area series displays graphically the quantitative data in a chart. It displays a series as a set of points connected by a line or spline with all the area filled in below the line.

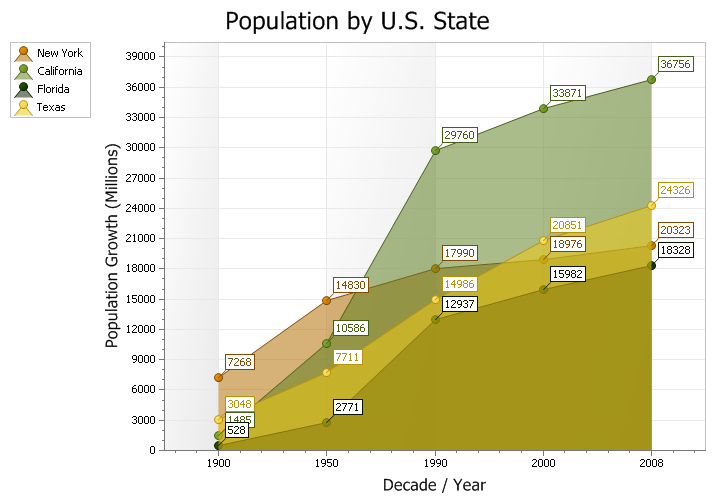

Area Chart

Example

' Area series style chart

ChartControl.Content.Legend.Visible = True
ChartControl.Content.Legend.HorizontalAlignment = xtpChartLegendNearOutside

Dim Series As ChartSeries

Set Series = ChartControl.Content.Series.Add("New York")
Series.Points.Add 1900, 7268
Series.Points.Add 1950, 14830
Series.Points.Add 1990, 17990
Series.Points.Add 2000, 18976
Series.Points.Add 2008, 20323

Set Series = ChartControl.Content.Series.Add("California")
Series.Points.Add 1900, 1485
Series.Points.Add 1950, 10586
Series.Points.Add 1990, 29760
Series.Points.Add 2000, 33871
Series.Points.Add 2008, 36756

Set Series = ChartControl.Content.Series.Add("Florida")
Series.Points.Add 1900, 528
Series.Points.Add 1950, 2771
Series.Points.Add 1990, 12937
Series.Points.Add 2000, 15982
Series.Points.Add 2008, 18328

Set Series = ChartControl.Content.Series.Add("Texas")
Series.Points.Add 1900, 3048
Series.Points.Add 1950, 7711
Series.Points.Add 1990, 14986
Series.Points.Add 2000, 20851
Series.Points.Add 2008, 24326

ChartControl.Content.Titles.Add "Population by U.S. State"
ChartControl.Content.Legend.Visible = True

Set ChartControl.Content.Series(3).Style = New ChartAreaSeriesStyle
Set ChartControl.Content.Series(2).Style = New ChartAreaSeriesStyle
Set ChartControl.Content.Series(1).Style = New ChartAreaSeriesStyle
Set ChartControl.Content.Series(0).Style = New ChartAreaSeriesStyle

Dim Diagram As ChartDiagram2D
Set Diagram = ChartControl.Content.Series(0).Diagram
Diagram.AxisY.Title = "Population Growth (Millions)"
Diagram.AxisY.Title.Visible = True
Diagram.AxisX.Title = "Decade / Year"
Diagram.AxisX.Title.Visible = True

See Also

ChartAreaSeriesStyle Members
